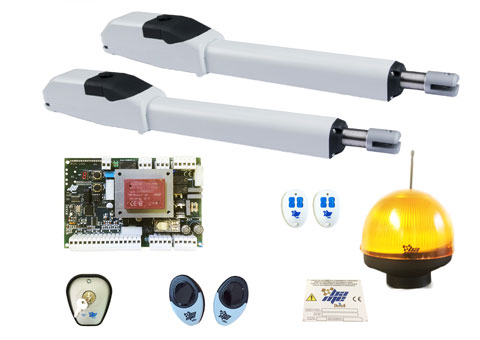

Kudu

The KUDU operator is composed of two cast aluminium bodies coated in epoxy powder, containing the electric motor, the first worm gear reduction, the release system and the conical gears made of sintered steel. The unlocking system is located on the operator top, protected by a removable plastic cap secured in place with a key lock. In the front cover are housed the capacitor and the limit switches electrical wiring if the operator is fitted with electrical limit switches. The Kudu has the same fitting quotes and the same fixing plates of PUMA and PUMA PLUS, this allows an easy and quick replacement. The operator comes in only one version without the use of left and right models simplifying greatly the installation.
CODE R60000 KUDU 230V
CODE R60001 KUDU 24V
N 36 pcs / PALLET
N 36 pcs / PALLET

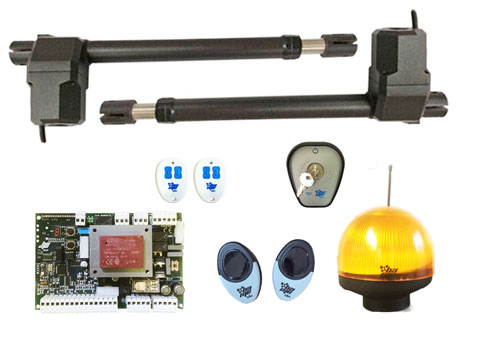

Tiger

Operator for gates with one or two swings up to 3,5 mt per swing. The operator is made in die-cast aluminium painted inepoxy powder to assure an high resistance against oxidation, the worm gear is lubricated with permanent grease and does not need any maintanance. The operator can be unlocked through the emergency release system to move the swing freely in case of a power failure. The 24V version can be equipped with a backup battery to be used in case of power failure.

CODE R57198 TIGER 230V LEFT
CODE R57199 TIGER 230V RIGHT
CODE R57202 TIGER 24V LEFT
CODE R57203 TIGER 24V RIGHT
N 30 Pcs / PALLET

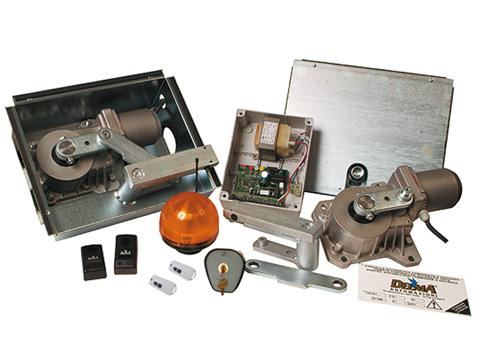

Mata

Electromechanical irreversible reducer suitable for swing gates can be installed without any modification to the original gate structure. The electric motor and the mechanical reducer are housed inside a waterproof diecast aluminium block. The reducer does not need any maintenance and is supplied with a galvanised foundation case. The operators are available with optional opening and closing limit switches.

CODE R65021 Mata 230V
CODE R65022 Mata 24V
N 20 Pcs / PALLET

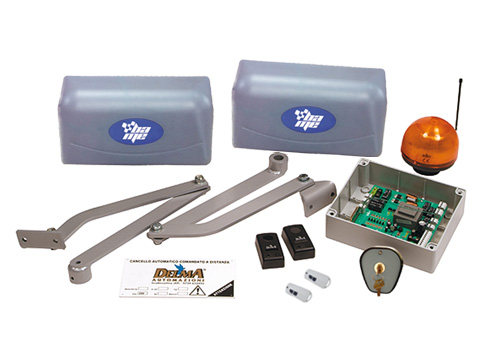

Kompass

Electromechanical reducer suited for residential use in swing gates with big supporting columns. The universal articulated arm can be adapted for left or right assembly. The irreversible reducer is housed in a die-cast aluminium body and can be used without an electric lock. All the system is enclosed by a very thick plastic cover. The operator can be equipped with an external keylock with the emergency release.

CODE R65072 KOMPASS 230V
CODE R65029 KOMPASS 12V
N 18 Pcs PER PALLET
